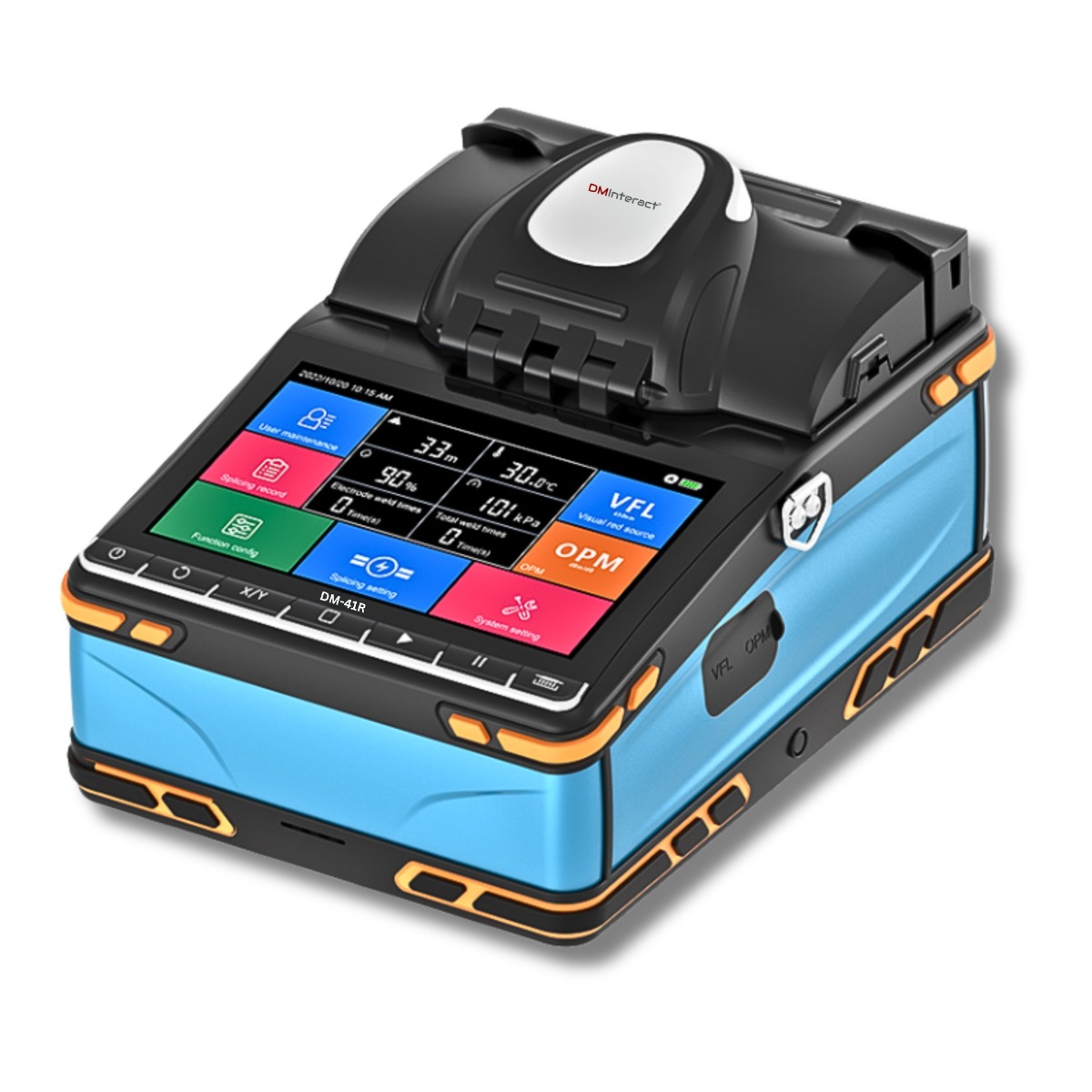

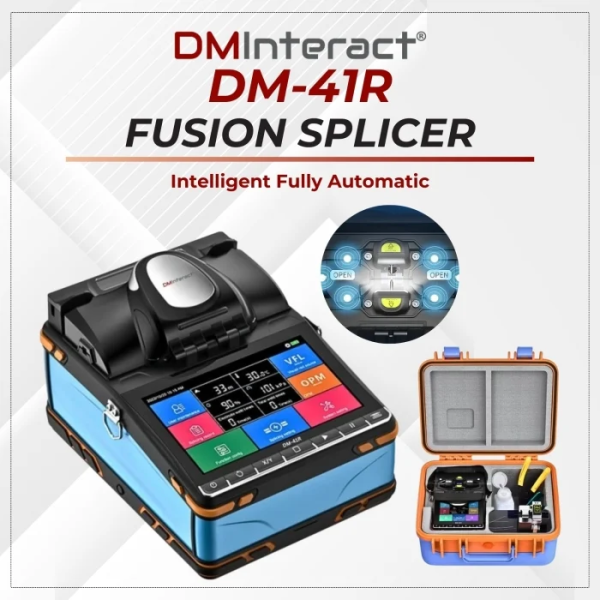

DMInteract DM-41R Anti Dust & Water Proof Self Calibrate 8 Second Welding Fusion Splicer Machine

AvailabilityIn stock
SKU
DM-41R
CA$1,296.73
Price Match Request

PRODUCT OVERVIEW



The DM-41R fusion splicer is engineered to maximize workflow efficiency in fiber optic splicing. At the forefront of its capabilities is its high-speed operation, achieving an impressive 8-second fast fusion time.  Complementing this is an 18-second heating time, which ensures quick preparation of the spliced fibers. This combination of rapid fusion and heating cycles significantly reduces the overall time required for splicing tasks, enabling technicians to complete more connections in less time.

Efficiency and Speed

The DM-41R fusion splicer is engineered to maximize workflow efficiency in fiber optic splicing. At the forefront of its capabilities is its high-speed operation, achieving an impressive 8-second fast fusion time. Complementing this is an 18-second heating time, which ensures quick preparation of the spliced fibers. This combination of rapid fusion and heating cycles significantly reduces the overall time required for splicing tasks, enabling technicians to complete more connections in less time.





Robust Design and Durability

Recognizing the demanding conditions in which fiber optic splicing often occurs, the DM-41R is built with a focus on durability. It incorporates an anti-dust design, featuring enclosed protective covers for sensitive components like the red light source and power supply interface. The device also boasts a waterproof construction, thanks to its one-piece molding, which effectively prevents liquid damage.  Furthermore, the DM-41R is equipped with fall protection, utilizing multiple soft rubber protection layers to absorb impacts and minimize the risk of damage from accidental drops.

Core Technology and Performance

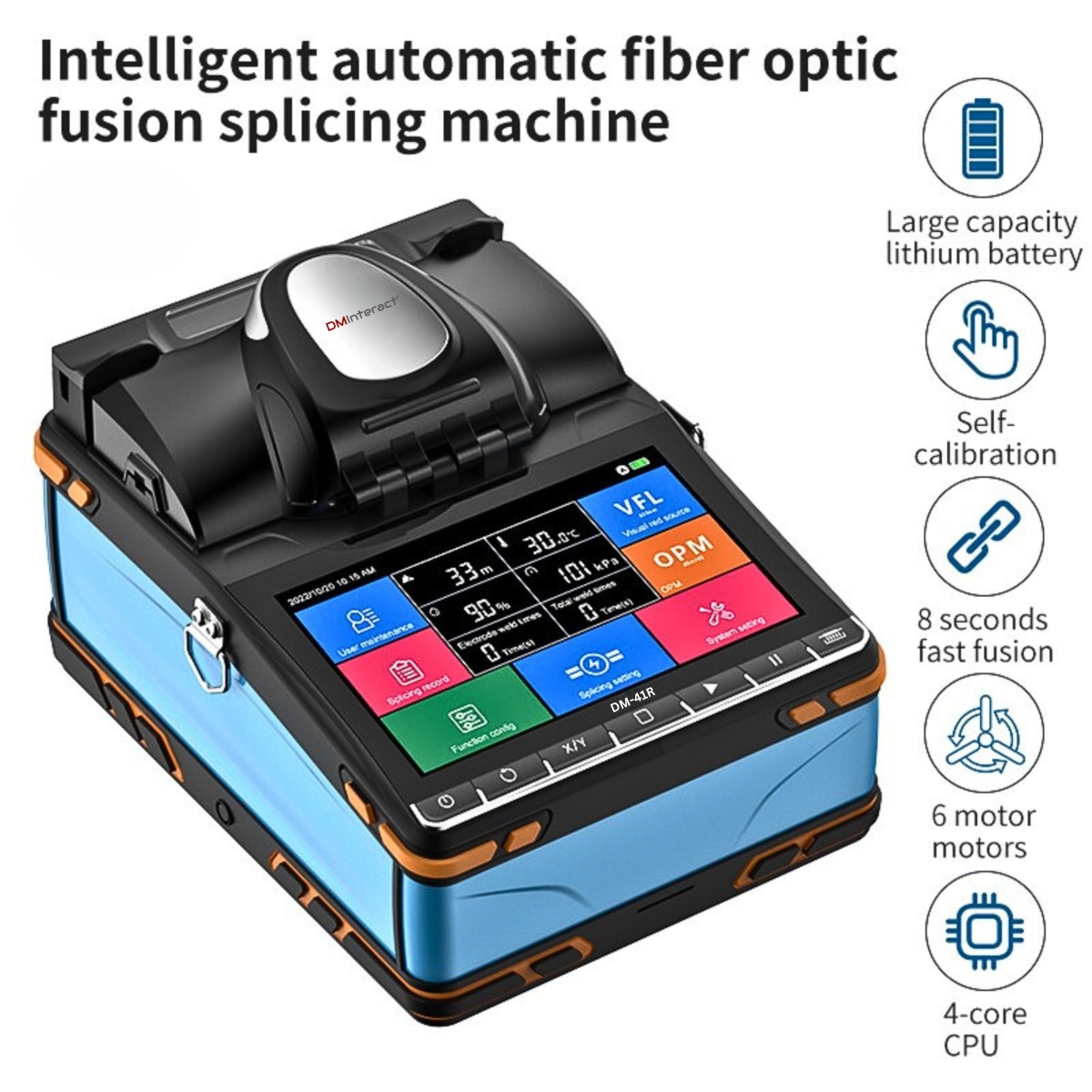

The DM-41R's performance is driven by its advanced internal technology. It employs a 6-motor positioning system, which ensures precise alignment of the optical fibers for optimal splicing. This precise alignment is crucial for achieving low splice loss and high-quality connections. Additionally, the DM-41R is equipped with an industrial-grade 4-core CPU. This powerful processor provides the necessary decoding capabilities to maintain smooth and stable operation, even in challenging environmental conditions.

Power and Battery Capabilities

Powering the DM-41R is a high-capacity 7800 mAh Li-ion battery. This substantial battery capacity enables the device to perform up to 240 heating cycles on a single charge, maximizing field operation time. In addition to its long-lasting performance, the battery also supports fast charging, with a 3.5-hour charging time.  The device can also serve as a power source to charge cell phones.



Adaptability to Environments

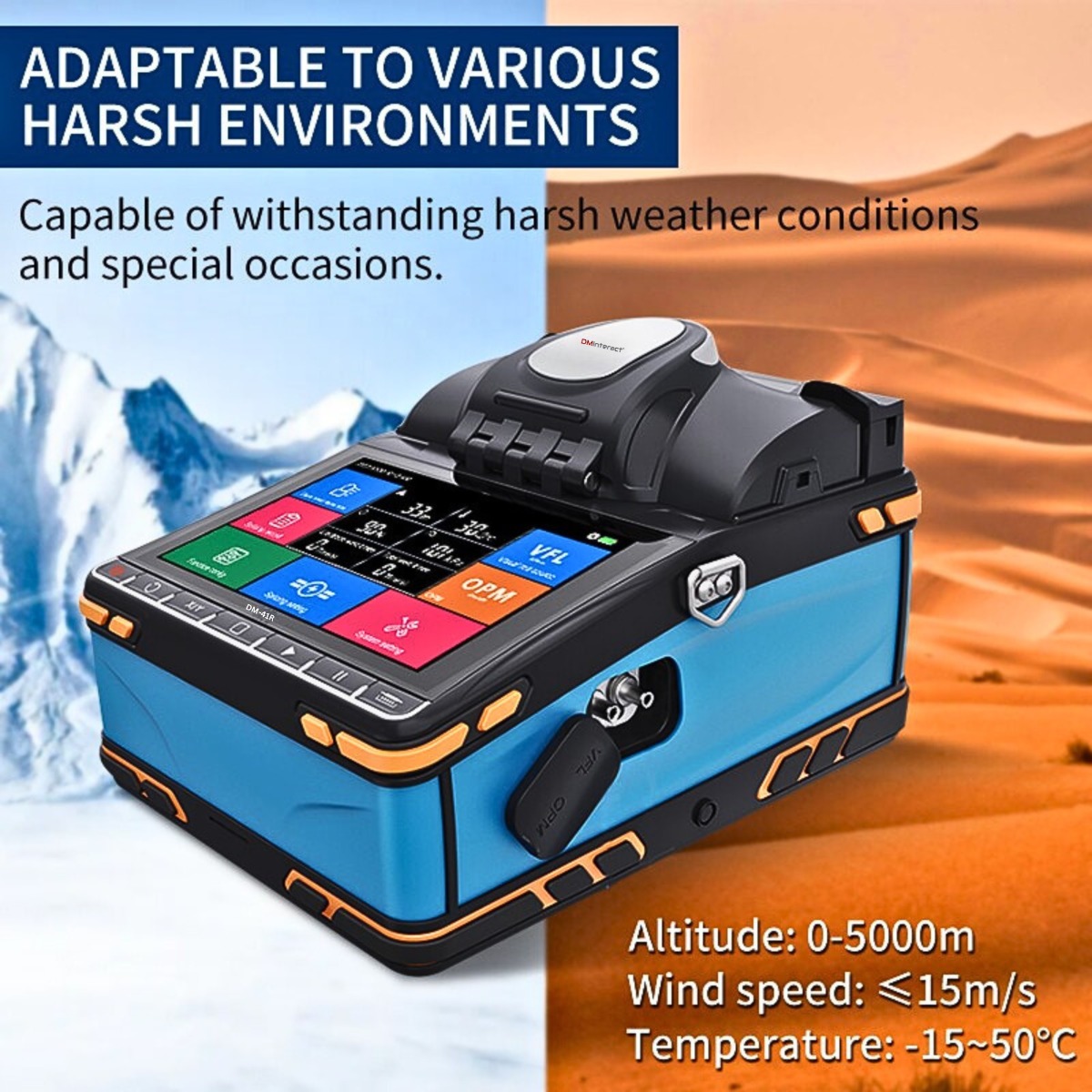

The DM-41R is engineered to be adaptable to a wide range of environmental conditions. It is designed to operate effectively at altitudes up to 5000 meters, in wind speeds up to 15 m/s, and within a temperature range of -15 to 50°C.  This robust environmental tolerance makes the DM-41R suitable for deployment in various field settings, from telecommunications infrastructure projects in urban areas to network installations in remote and challenging terrains.

Certifications and Compliance

The DM-41R fusion splicer adheres to industry standards and regulatory requirements, as evidenced by its various certifications. These include CE, FCC, and RoHS certifications, confirming its compliance with safety, electromagnetic compatibility, and environmental standards. Furthermore, the device has undergone calibration, with calibration reports available to ensure accuracy and reliability of its measurements.  The DM-41R is also backed by patent certificates, demonstrating its innovative design and technology.



Key Features:



  • Core alignment technology for precise splicing

  • Active Fusion Control Technology for optimized splice loss reduction

  • Active Blade Management Technology for automatic cleaver blade rotation

  • 5.5-inch touchscreen with an intuitive graphical interface

  • Automated wind protector and sheath clamps for seamless operation

  • Lithium-ion battery supporting 300 splices per charge

  • Universal sheath clamp for various fiber types

More Information
Manufacturer DMInteract
Product Model DM-41R
Applicable Optical Fiber: SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655)
Fiber Diameter: Cladding Layer: 80-150µm; Coating Layer: 0.1-3mm
Splicing Loss: 0.02dB(SMF), 0.01dB(MMF), 0.04dB(DSF/NZDSF) Measured By ITU-I Shear Method
Alignment Method: Fiber Core, Cladding
Focusing Method: 6 Motors Auto Focus
Splicing Method: Automatic / Manual
Splicing Time: 8s (SMF Typical)
Relay Test: 1.96 - 2.25N
Screen Display: 5.5" Capacitive Touch LCD Screen
Magnification: 300 (X/Y), 150 (X/Y Synchronization)
Splicing Record: 1000 Groups
Typical Heating Time: 18S
Heating Time: 0 - 60S
Heat Shrink Sleeve: 20mm, 30mm, 40mm, 50mm, 60mm
OPM: Range (dBm): -70~+3 / Wavelength: 850nm - 1625nm / Uncertainty: ≥ 0.5%
VFL: ≥ 10mW
Operation Interface: GUI Graphical User interface
System Upgrade: USB Upgrade
Electrode Rod Life: 3000 Times
Lighting Method: Automatic / Manual
Battery Capacity 7800mAh
Charging Time: ≤3.5h
Charging Input: AC 100-240V, 50/60Hz
Charging Output: DC13.5V / 4A
Output Voltage: DC 11.1V
USB Port Output: 5V / 500mA
Working Environment: Temperature: -15°C - 50°C / Humidity: 0-95% (No Condensation) / Altitude: 0-5000m / Wind Speed: ≤ 15m/s
Storage Conditions: Temperature: -40°C - 80°C / Humidity: 0-95%
Available Colors Black
Product Weight 1.74
Dimensions 19cm (L) x 14.6cm (W) x 11.7cm (H)
Country of Manufacture China
