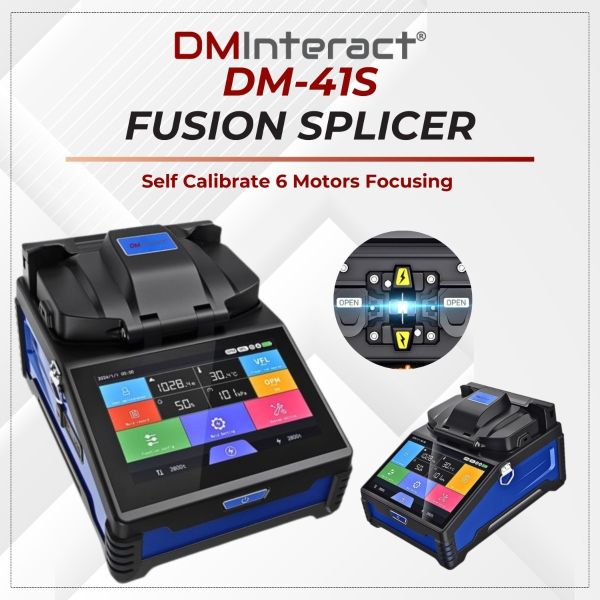

Canada Office: 801 Dundas Street East, Unit #D6, Mississauga, Ontario, L4Y 4G9 Phone: +1 (416) 451-1868 | +1 (416) 302-3017DMInteract DM-41S Three In One Clamp Self Calibrate 6 Motors Focusing Welding Fusion Splicer Machine
AvailabilityIn stock
SKU
DM-41S
CA$1,038.00
PRODUCT OVERVIEW
Efficiency in Fiber Splicing
The DmInteract DM-41S is designed to provide efficient fiber optic splicing. It is capable of 8-second rapid welding and 18-second rapid heating, which contributes to its high efficiency. This speed allows for more connections to be completed in a shorter period.
Advanced Motor SystemThe DmInteract DM-41S incorporates a 6-motor drive system. This system, equipped with precise micro-step guides, reduces positioning and dissolution loss compared to 4-motor systems. The design aims to achieve faster dissolution time and higher work efficiency. |
 |
 |
Integrated Optical ToolsThe DmInteract DM-41S has a built-in red light source (VFL) and optical power meter (OPM). This integration supports six wavelengths and features self-calibration of optical power. The device also offers large-capacity storage, capable of saving tens of thousands of data. |
Power and Battery FunctionalityThe DmInteract DM-41S is equipped with a large capacity 7800mAh lithium battery. This battery supports approximately 240 cycles of welding and heating. The device can also charge phones and export welding data via USB. |
 |
|
|
User Interface and DisplayThe DmInteract DM-41S features a 5-inch SPI HD screen and a GUI (Graphical User Interface). The interface displays information such as X/Y axis, welding loss, and cutting angle, and it provides intelligent detection and prompts for welding faults. |
Application and Design
The DmInteract DM-41S is designed for various applications, including FTTH fiber installation, communication engineering, security monitoring, metropolitan area networks, fiber optic renovation projects, and power optical cable fusion splicing. The device measures 191 * 141 * 119mm.
Key Features:
-
Core alignment technology for precise splicing
-
Active Fusion Control Technology for optimized splice loss reduction
-
Active Blade Management Technology for automatic cleaver blade rotation
-
5.5-inch touchscreen with an intuitive graphical interface
-
Automated wind protector and sheath clamps for seamless operation
-
Lithium-ion battery supporting 300 splices per charge
-
Universal sheath clamp for various fiber types
| Manufacturer | DMInteract |
|---|---|
| Product Model | DM-41S |
| Applicable Optical Fiber: | SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655) |
| Fiber Diameter: | Cladding Layer: 80-150µm; Soil Cover Layer: 0.1-3mm |
| Splicing Loss: | 0.02dB(SMF), 0.01dB(MMF), 0.04dB(DSF/NZDSF) |
| Alignment Method: | Fiber Core, Cladding |
| Focusing Method: | 4 Motors Auto Focus |
| Splicing Method: | Automatic / Semi-Automatic / Manual |
| Splicing Time: | 8s (SMF Typical) |
| Relay Test: | 1.96 - 2.25N |
| Screen Display: | 5" Capacitive Touch LCD Screen |
| Magnification: | 300 (X/Y), 150 (X/Y Synchronization) |
| Splicing Record: | 1000 Welding Dara And 1000 Images |
| Typical Heating Time: | 18S |
| Heating Time: | 0 - 60S |
| Heat Shrink Sleeve: | 20mm, 30mm, 40mm, 50mm, 60mm |
| OPM: | Range (dBm): -70~+3 / Wavelength: 850nm - 1625nm / Uncertainty: ≥ 0.5% |
| VFL: | ≥ 10mW |
| Operation Interface: | GUI Graphical User interface |
| System Upgrade: | USB Upgrade |
| Electrode Rod Life: | 3000 Times |
| Lighting Method: | Automatic / Manual |
| Charging Time: | ≤3.5h |
| Charging Input: | AC 100-240V, 50/60Hz |
| Charging Output: | DC13.5V / 4A |
| Output Voltage: | DC 11.1V |
| USB Port Output: | 5V / 500mA |
| Battery Capacity | 5200mAh |
| Working Environment: | Temperature: -15°C ~ 50°C / Humidity: 0-95% RH (No Condensation) / Altitude: 0-5000m / Wind Speed: ≤ 15m/s |
| Storage Conditions: | Temperature: -40°C ~ 80°C / Humidity: 0-95% Battery Temperature: -20°C ~ 30°C |
| Available Colors | Black |
| Product Weight | 1.62 |
| Dimensions | 19.1 x 14.1 x 11.9cm |
| Packaging Weight | 4.58 KG |
| Packaging Dimension | 34.2 x 28 x 18.7cm |
| Country of Manufacture | China |
