DMInteract DM160VC 7pcs Pressure Roller and 1540mm Cutting Width Vinyl Cutting Plotter

PRODUCT OVERVIEW

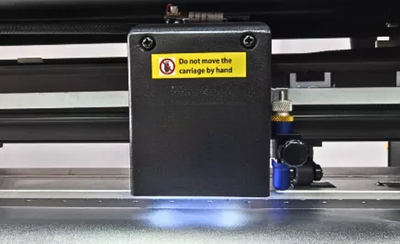

The DM160VC High-Speed Servo Vinyl Cutter is a professional-grade roll-fed plotter designed for high-volume applications, offering a balance between speed and precision. Equipped with a high-resolution CCD camera, it quickly scans registration marks for accurate contour cutting. The servo drive system ensures stable and precise performance, while the cutter supports long-length tracking, handling rolls up to 4 meters without deviation. With a user-friendly touchscreen interface and multiple connectivity options—including USB, U-disk, network, and Wi-Fi it integrates seamlessly with popular design software like SignMaster and AIDCut-CAM. This cutter is ideal for producing banners, decals, and other large-format graphics efficiently and accurately.

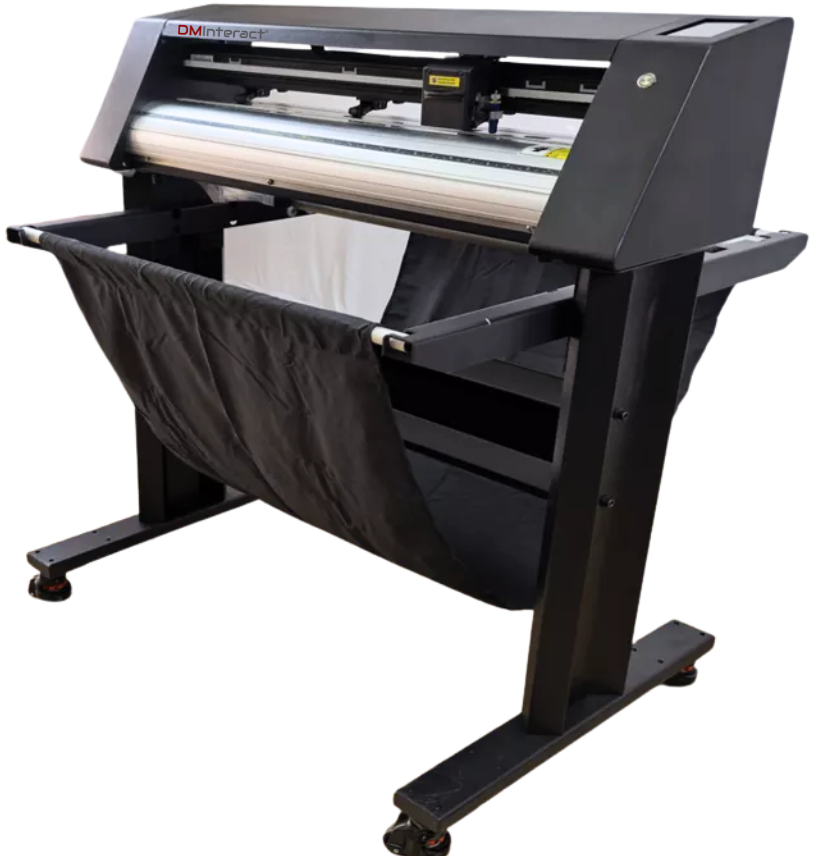

The DM160VC Vinyl Cutting Plotter is a robust, high-precision machine engineered for both professional sign makers and demanding creative users. Powered by a high-torque servo motor system, it delivers exceptionally smooth and accurate cutting performance, achieving a precision level of up to ±0.02 mm. Equipped with a built-in CCD camera, the DM160VC delivers advanced contour cutting capabilities by automatically recognizing registration marks, making it especially effective for handling pre-printed media and complex graphics. Its cutting speed of up to 1200 mm/s, combined with stable long-length tracking and 6 pressure rollers, enables consistent performance across large-scale and continuous jobs.

Seamless file transfer capabilities via USB connection and U-disk support enhance workflow flexibility. Additionally, the DM160VC integrates easily with industry-standard software such as SignMaster and AIDCut-CAM, offering intuitive control and broad file compatibility.

Whether you're producing signage, vehicle wraps, vinyl decals, labels, or other professional-grade applications, the DM160VC delivers exceptional speed, precision, and versatility to meet the highest production demands.

Multiple Interfaces Multiple data transfer methods are supported. U-disk, network, USB cable, and Wi-Fi connection. Users are allowed to select the data transfer method depending on various situations.

Touch Control Screen User-friendly touch control screen provides a convenient operating experience.

Paper Feeding System Auto feeding system, easy to feed the roll material, smooth and fast.

Suction Holes

The user-friendly touch control screen provides a convenient operating experience.

Paper Pressing Device There is a row of paper-pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range, and reduce the offset.

Press bar After loading the material, pull down the handle to press the material so that the material can be fixed during the paper feeding process and reduce the offset.

Graduation The graduations are marked on the paper-feeding side of the working platform. So that the material size can be easily measured and adjusted when feeding the material

Signmaking Applications

Every company needs to advertise for itself, but advertising is often far too expensive for small- to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company for use in advertising. It not only saves a large amount of money but also provides plenty of room to develop your creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways quickly and easily:

• Corporate sign making

• Corporate vehicle signage

• Design of the shop window advertising

• Creating banners and stadium advertising at events

• Design of the premises of the Company (Room label, signs, screening applications, design elements)

• Production of stickers and labels as so-called Print&Cut applications—first you print on, e.g., sign vinyl, then contour-cut with the vinyl cutter.

Home Applications

Anyone who wants to individually create their personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized, as this selection shows.

• Customized wall tattoo

• Create kitchen surfaces

Hobby Applications in the Fields of Decoration, Model Making, etc.

• Create templates for painting colorful wall designs, including banners, ornaments, and children’s artwork.

• Individual design of garments like t-shirts, jackets, sweatshirts, etc., with flock or flex film.
