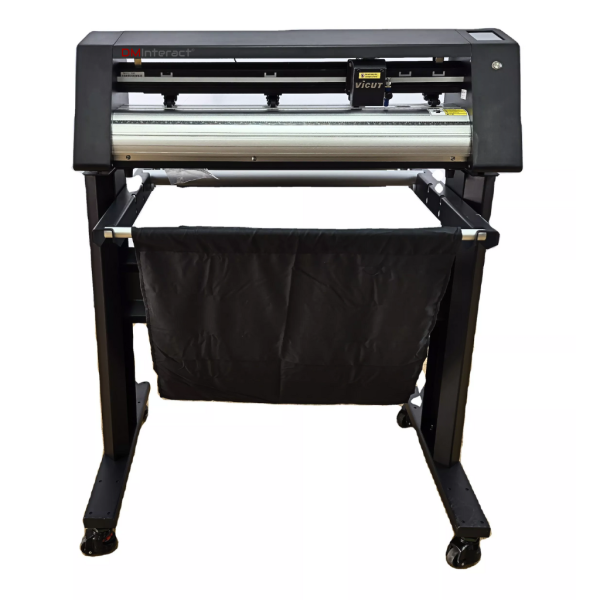

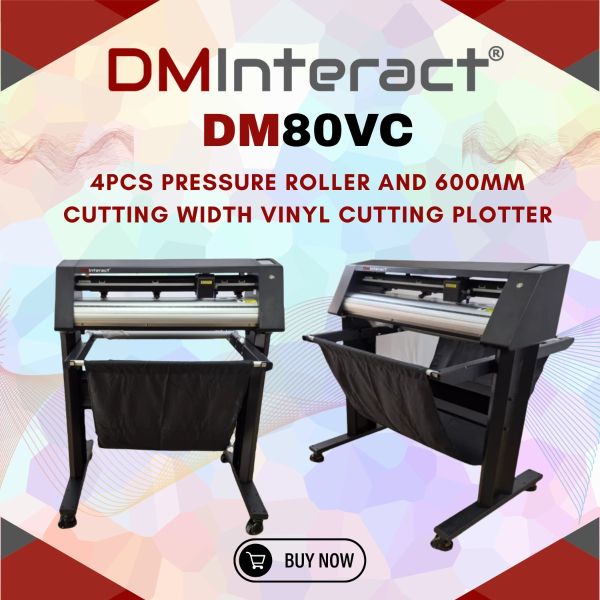

DMInteract DM80VC Servo ARMS & CCD Camera Vinyl Cutting Plotter

PRODUCT OVERVIEW

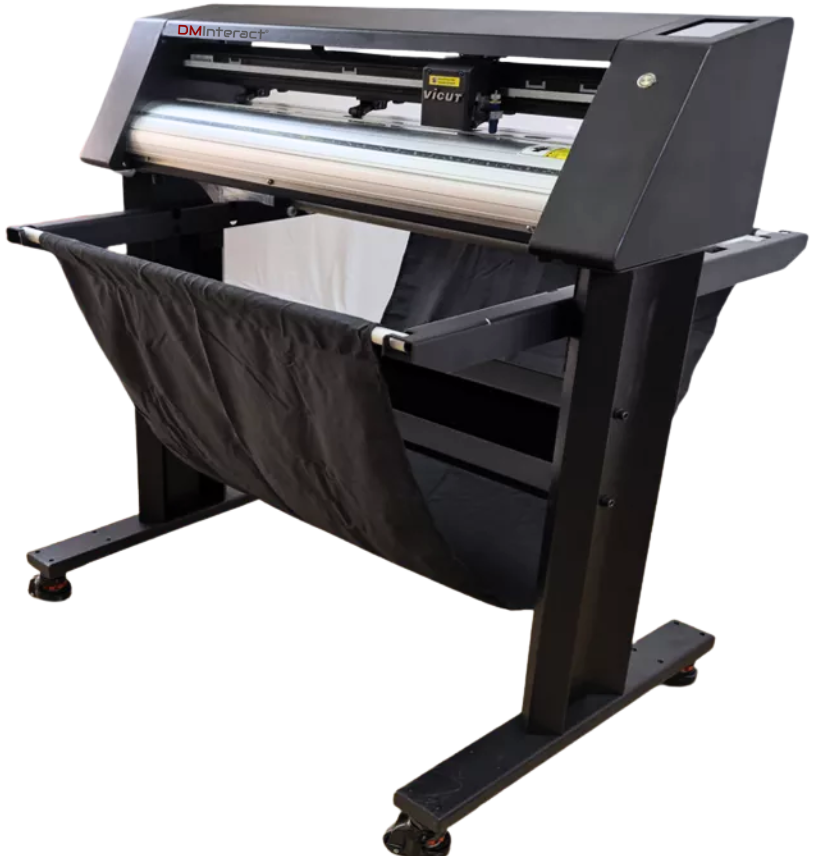

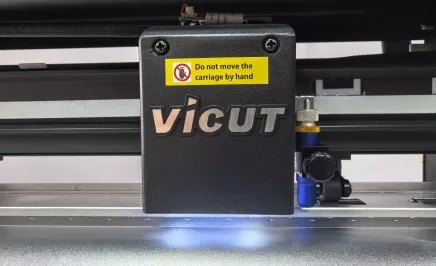

The DMinTeract DM80VC Vinyl Cutting Plotter is a high-precision machine equipped with servo motors and a CCD camera for accurate contour cutting. Its advanced features include a mechanical resolution of 0.0245 mm, a cutting speed of up to 1200 mm/s, and seamless registration mark detection, making it ideal for detailed and extended cutting tasks without material misalignment.

The DM80VC Desktop Vinyl Cutter is a high-precision cutting machine designed for both professional and hobby use, featuring a powerful servo motor system that enables smooth, accurate cuts with a precision of up to ±0.02 mm. Equipped with a built-in CCD camera, it offers precise contour cutting by automatically detecting registration marks, making it ideal for printed graphics. With cutting speeds up to 1200 mm/s and stable long-length tracking, it handles large-scale jobs with ease. The VC80 supports multiple file transfer options, including USB and U-disk, and integrates seamlessly with popular design software like SignMaster and AIDCut-CAM, making it a versatile and efficient tool for sign making, vinyl decals, labels, and more.

Perfect for signage, garment decoration, and custom decal production, the DM80VC supports a wide range of materials and formats. With multiple connectivity options (USB, U-disk, and network) and compatibility with major cutting software, it offers both convenience and professional-grade results in a compact, user-friendly design.

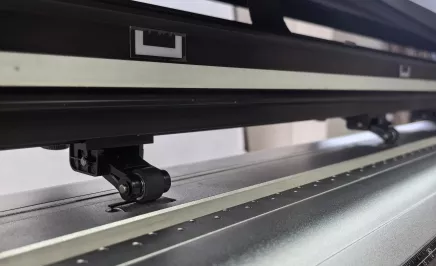

Steel Thorn and Pressure Roller The plotter is equipped with steel that can fix media effectively to avoid any sliding and ensure feeding precision. There are several pressure rollers on up upside of the beam; the distance between each roller can be adjusted to fit different-sized media. These high-precision imported rollers assure no offset feeding over long distances.

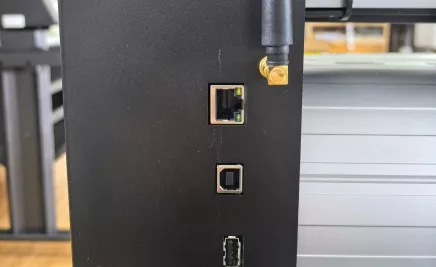

Multiple Interface Multiple data transfer methods are supported. U-disk, Network, USB cable, and WI-FI connection. Users are allowed to select the data transfer method depending on various situations.

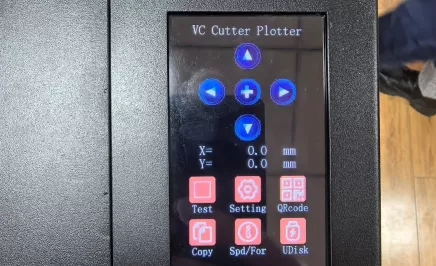

Touch Control Screen User-friendly touch control screen provides a convenient operating experience.

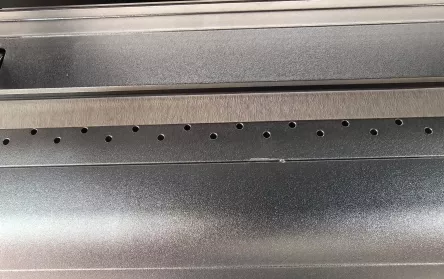

Suction Holes

User-friendly touch control screen provides a convenient operating experience.

Paper Feeding System Auto feeding system, easy to feed the roll material, smooth and fast.

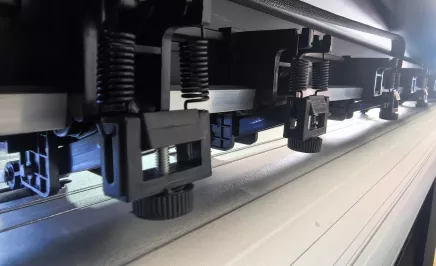

Paper Pressing Device There is a row of paper pressing devices behind the plotter beam. During the working process, these paper presses can well fix the materials, ensure that the materials move within the fixed range, and reduce the offset.

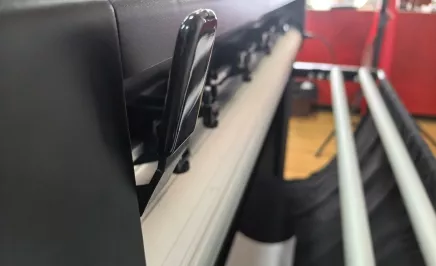

Press bar After loading the material, pull down the handle to press the material, so that the material can be fixed during the paper feeding process and reduce the offset.

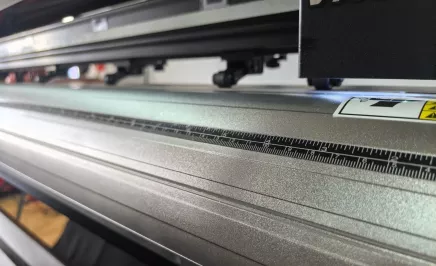

Graduation The graduations are marked on the paper feeding side of the working platform. So that the material size can be easily measured and adjusted when feeding the material.

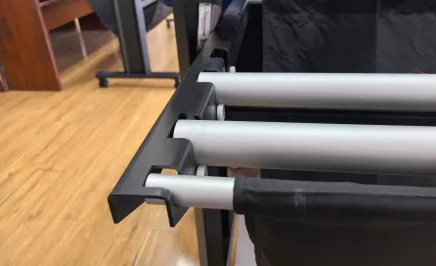

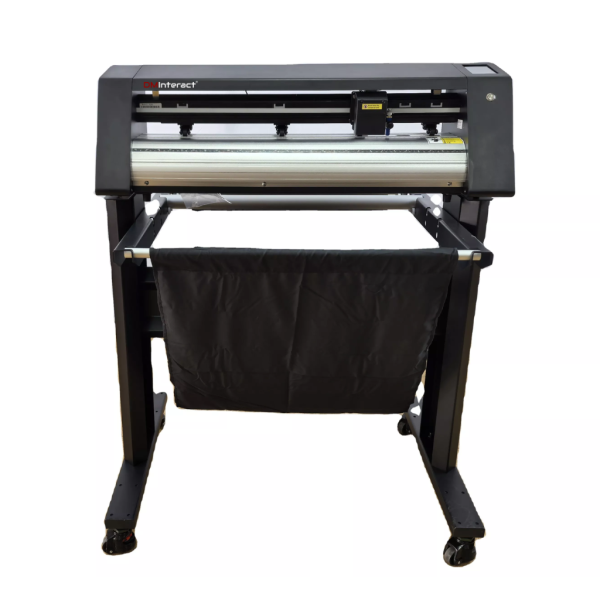

Catch-up basket The machine is equipped with a set of catch-up baskets, including 2 pieces of holding rollers and one piece of high-quality nylon cloth bag, saving space while keeping materials clean and tidy.

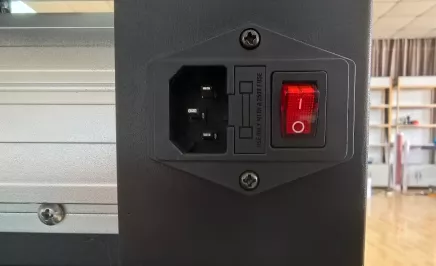

Switch on the Button & Power Interface Switch on and off easily with a press button after connecting the power cable to the plotter. We offer various worldwide standard power plugs. The voltage can also be customized due to customer needs.

Signmaking Applications

Every company needs to advertise for itself, but advertising is often far too expensive for small to medium-sized businesses. The vinyl cutter can offer relief. The vinyl cutter is the central device in a company for use in advertising. It not only saves a large amount of money, but also provides plenty of room to develop your creativity and ideas. With a vinyl cutter, you can, for example, advertise in the following ways, quickly and easily:

• Corporate signmaking

• Corporate vehicle signage

• Design of the shop window advertising

• Creating banners and stadium advertising at events

• Design of the premises of the Company (Room label, signs, screening applications, design elements)

• Production of stickers and labels as so-called Print&Cut applications - first you print on, eg, sign vinyl, then contour-cut with the vinyl cutter.

Home Applications

Anyone who wants to individually create their personal environment will find a vinyl cutter to be the right tool. With these machines, many different creative ideas can be realized, as this selection shows.

• Customized wall tattoo

• Create kitchen surfaces

Hobby Applications in the Fields of Decoration, Model Making, etc.

• Create templates for painting colorful wall designs, including banners, ornaments, and children’s artwork.

• Individual design of garments like t-shirts, jackets, sweatshirts, etc., with flock or flex film.
